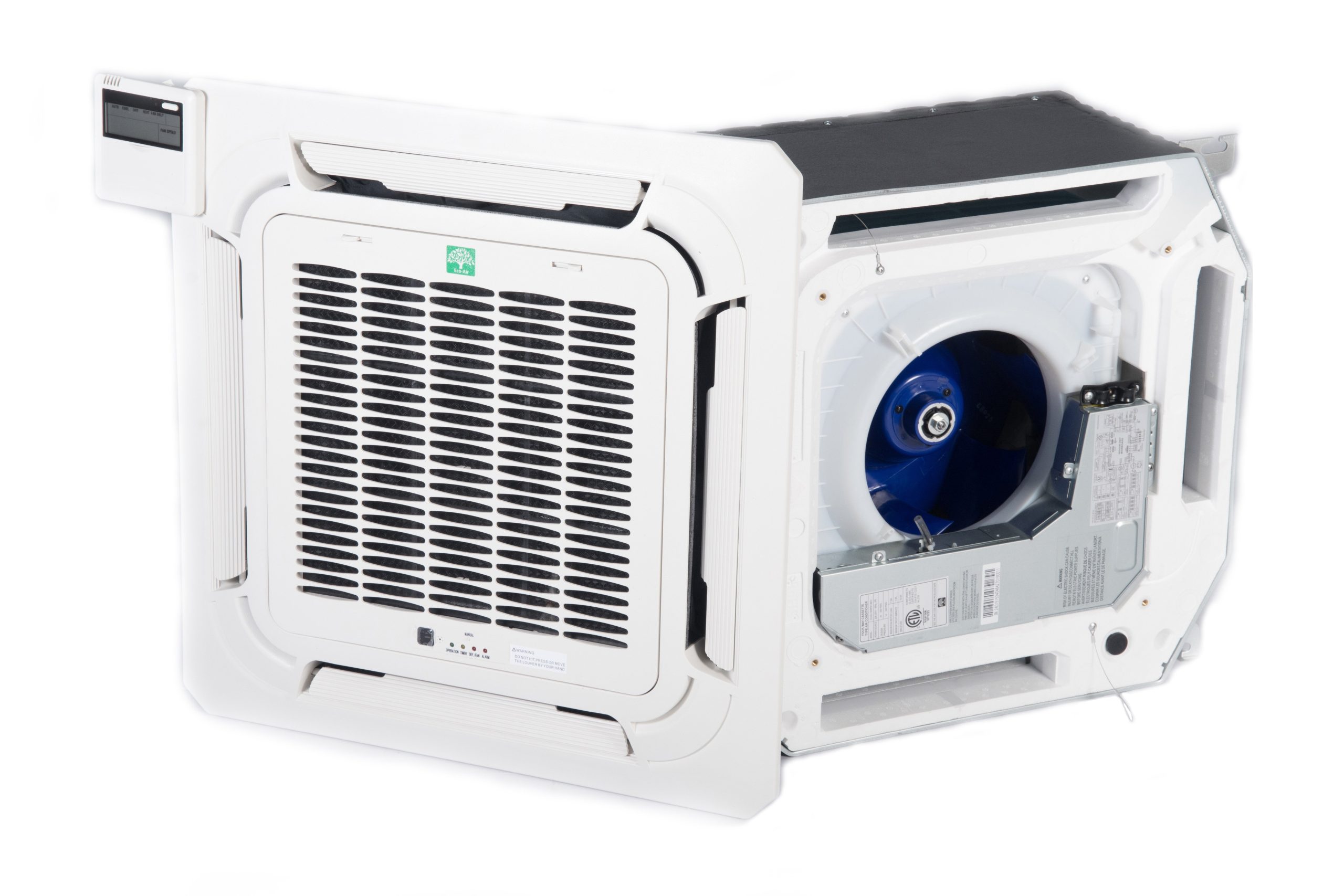

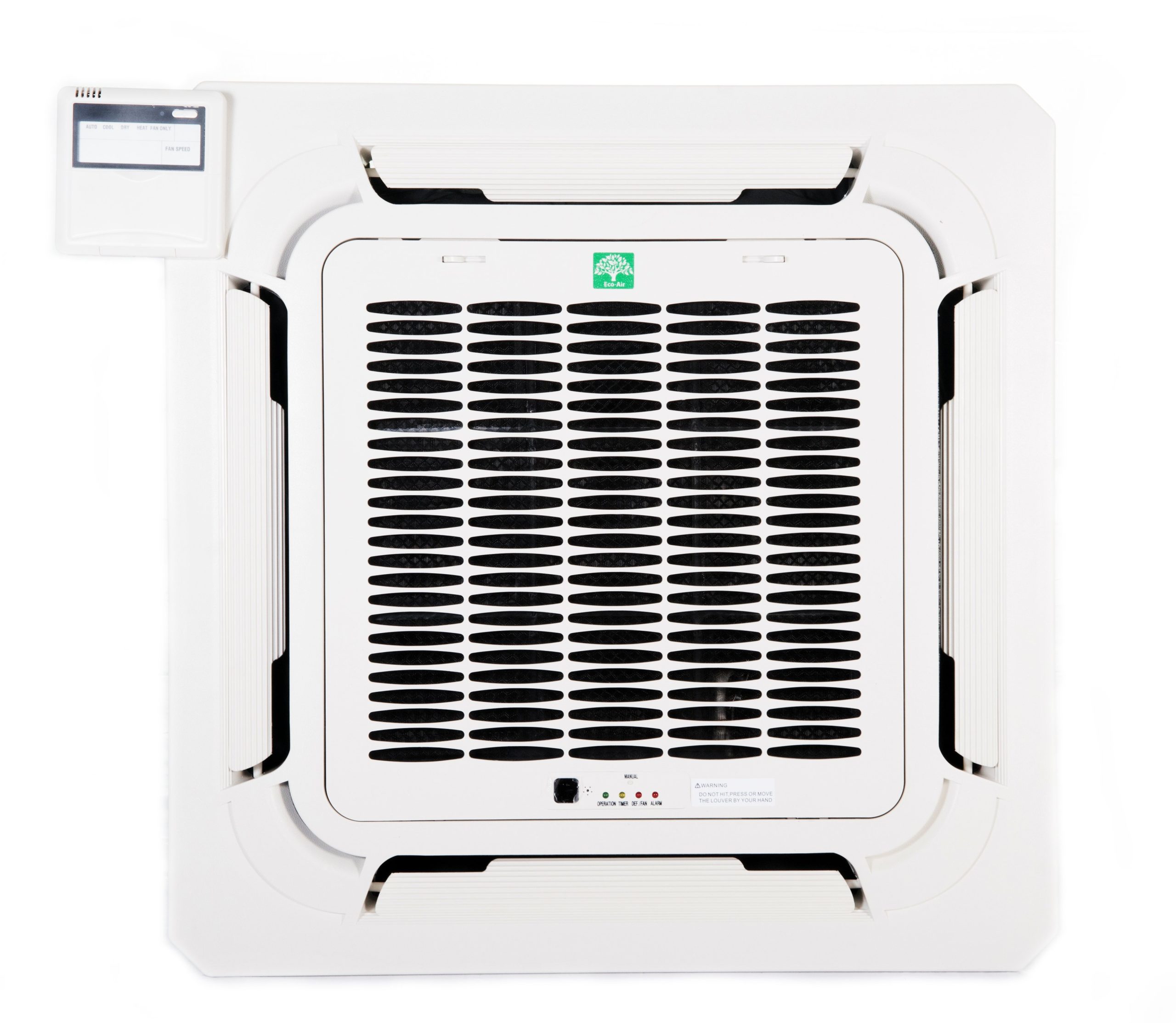

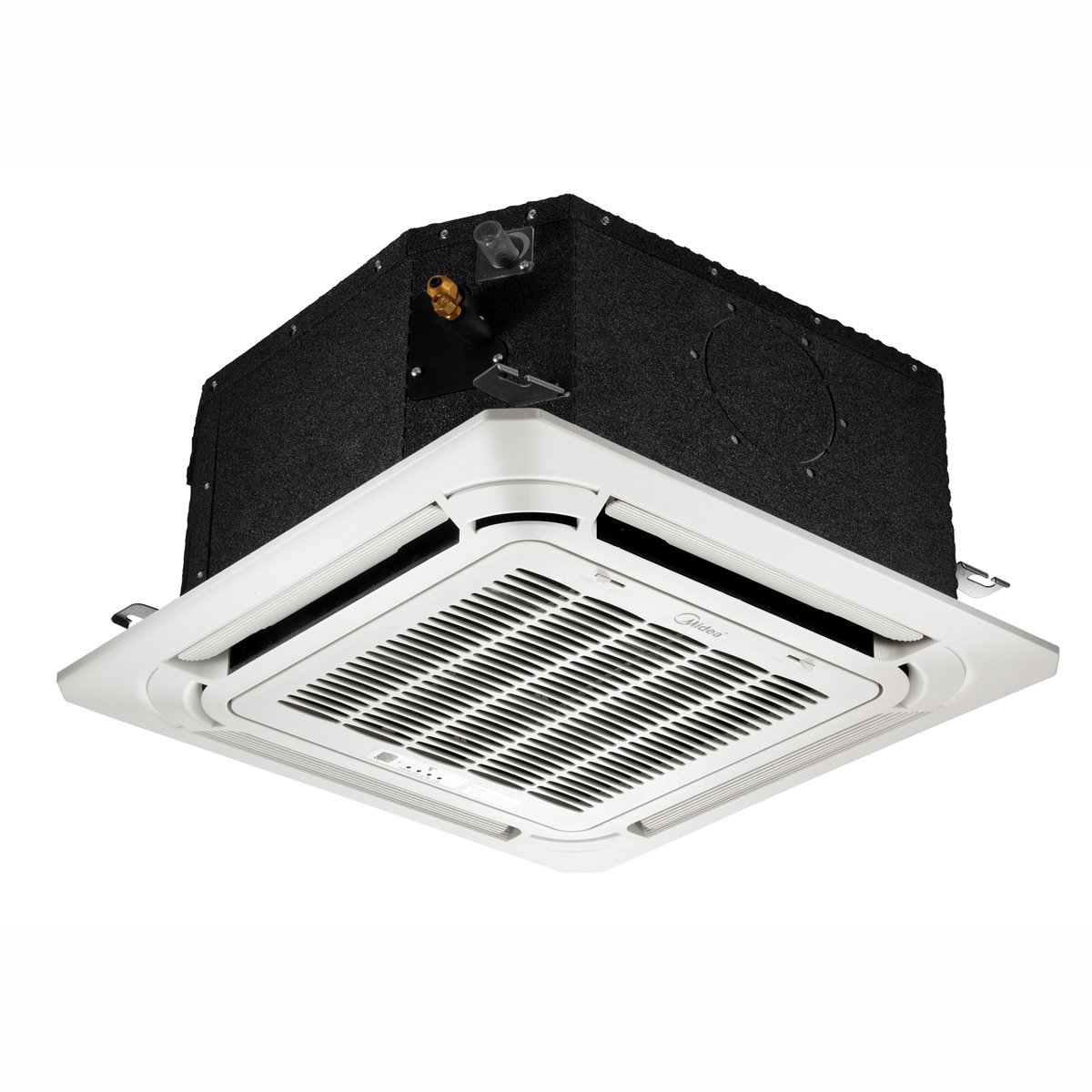

Single Zone/Multi-Zone Four Way Ceiling Cassette Combinations

Ceiling cassettes feature a unique drop-in design that provides a sleek look along with heating output capacity down to an impressive -22°F (-30°C), and high temperature cooling to 122°F (50°C). With a full range of 9,000 to 48,000 BTU/h options and two different chassis, our cassettes bring flexibility and comfort to a variety of home and business applications—and with ENERGY STAR® certified energy savings.

The Universal Matching feature of our Premier series also allows for single or multi-zone settings alike.

Ceiling cassette indoor unit can be mixed and matched with other multi-zone indoor units for zone control of multiple rooms/areas.

•  Wireless remote include and wired wall thermostat optional.

•  “Follow Me” feature on remote

•  Fits 24″ x 24″ ceiling tile opening

•  Multiple modes and intelligent pre-heat

This product is currently out of stock and unavailable.

asdfg

Extra Low Temperature Heating

When it’s cold outside it’s warm inside. Premier ductless systems can be used as a primary heat source, with heat output down to -22°F (-30°C).

dfgh

Base Pan Heater

A base Pan Heater is standard on Eco-Air outdoor units to prevent water and ice accumulation during defrost cycles or during adverse weather conditions. This ensures that the water can drain away even during freezing weather.

asdfg

Compressor Heating Belt

A factory installed heating belt is fitted on the compressor to ensure easy start-ups and proper compressor lubrication in cold weather conditions

ghjk

Low Ambient Cooling

When its cold outside but you still need cooling inside, the air conditioner will can continue to operate. This feature is especially useful if you have a room with a lot of glazing that needs cooling during the winter or in the shoulder seasons. Server rooms and commercial kitchens that need year round cooling can also benefit from this feature .

asdfg

Built-in Drain Pump

A powerful, built-in drain pump can lift the condensing water up to 29 inches and discharge the condensate into a gravity drain.

fghj

Fresh Air Intake

The air handler is able to mix fresh air from the outside with room existing air to achieve optimal indoor air quality (IAQ).

dfgh

360°Air Flow Panel

360° air outlet creates a soft and gentle air flow which circulates throughout the whole space and provides an even temperature distribution in the room.

rtyui

Single & Multi-Zone Compatible

Compatible indoor unit for both single and multi inverter systems. It comes in handy for warehouse management.

DFGHJ

Auto Defrost

Prevents evaporator from freezing and maintains dehumidifying effect in low temperature environments.

ghjj

Auto Restart Function

If the air conditioner shuts off unexpectedly due to a power outage, it will restart with the previous settings automatically when the power resumes.

gggg

Refrigerant Leak Detection

Indoor unit shows error code “EC” and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.



Model Number

MCDHU-H12B-2A, MCDHU-H18B-2A, MCDHU-H24B-2A, MCDHS-H36B-2A

I’m glad you’re interested in this product. NAHVAC is a wholesale distributor in Canada, so the unit is normally sold through HVAC wholesalers that work with licensed contractors. If you’d like help finding a local distributor or arranging a purchase, just fill out the information below and we’ll connect you with the right partner.
