• Can be used with all brands of mini split ductless and central system air conditioners and heat pumps.
• All line sets include insulated copper liquid and suction lines that are insulated with tear-resistant 3/8 inch thick white polyethylene jacketed foam rubber insulation.

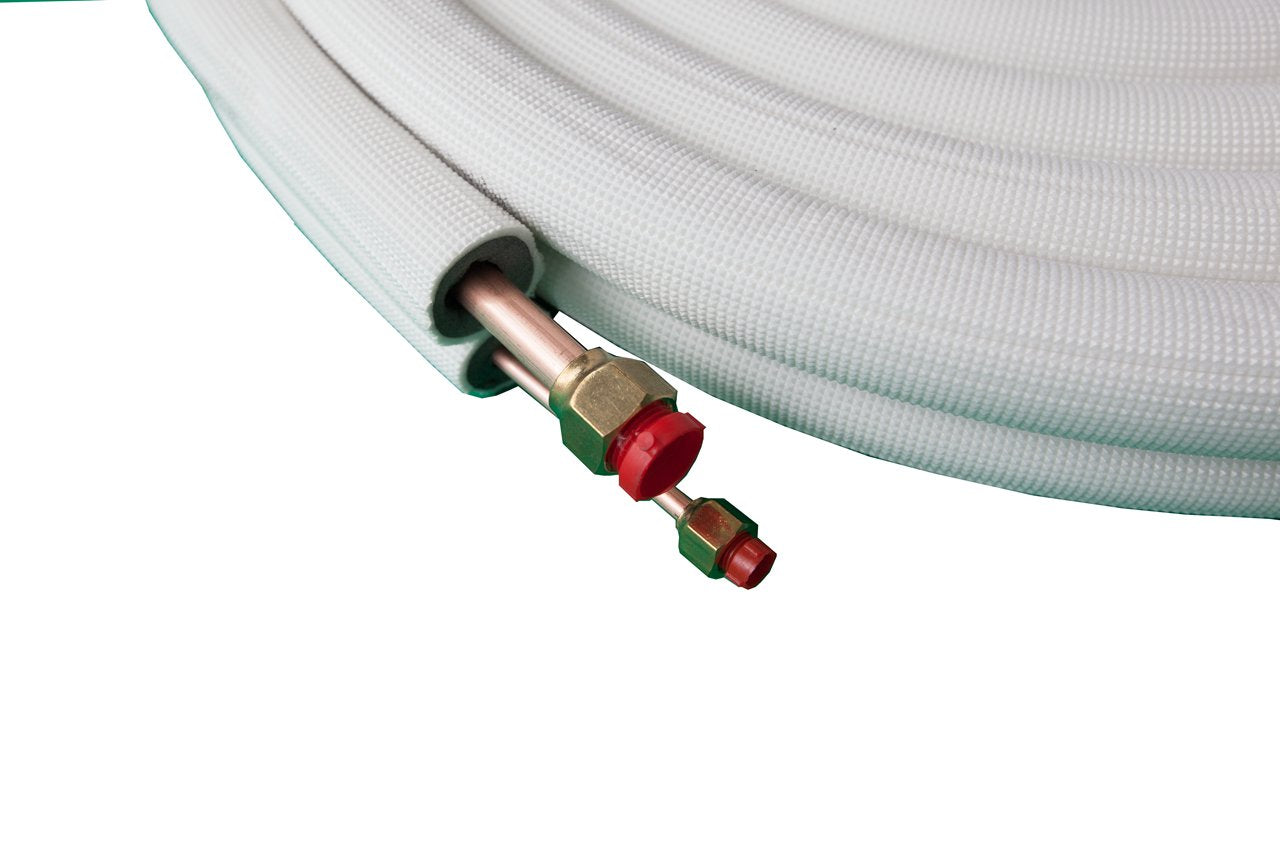

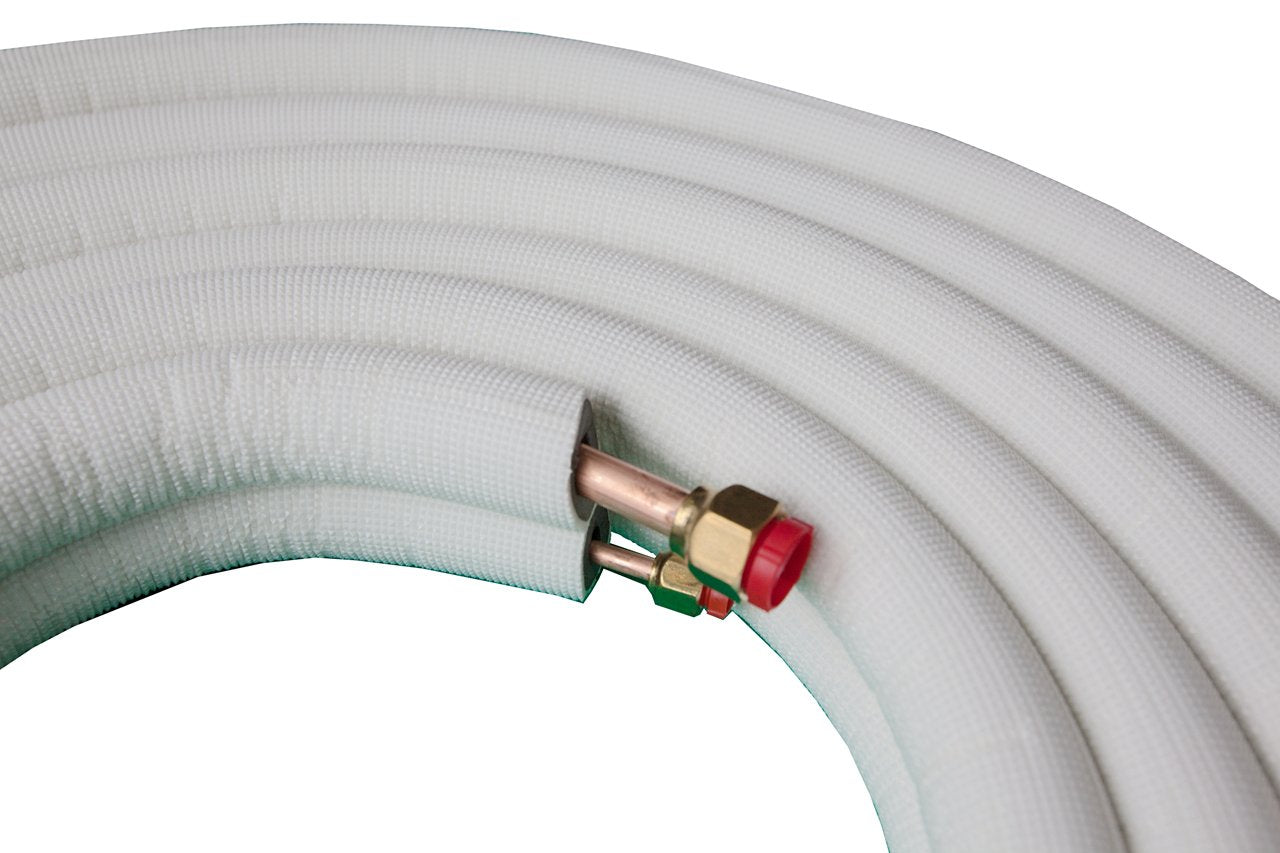

• Each set is equipped with flare nuts on both ends.
• Copper tube ASTM B280.
• Surface burning characteristics UL 94.
• Meets ASTM E84 for smoke and fire.
• Has an exterior that’s resistant to UV.
• Line sets are available in 15ft, 25ft, and 50ft lengths.
• Each item is placed in a separate box making them more convenient for storage and for shipping.

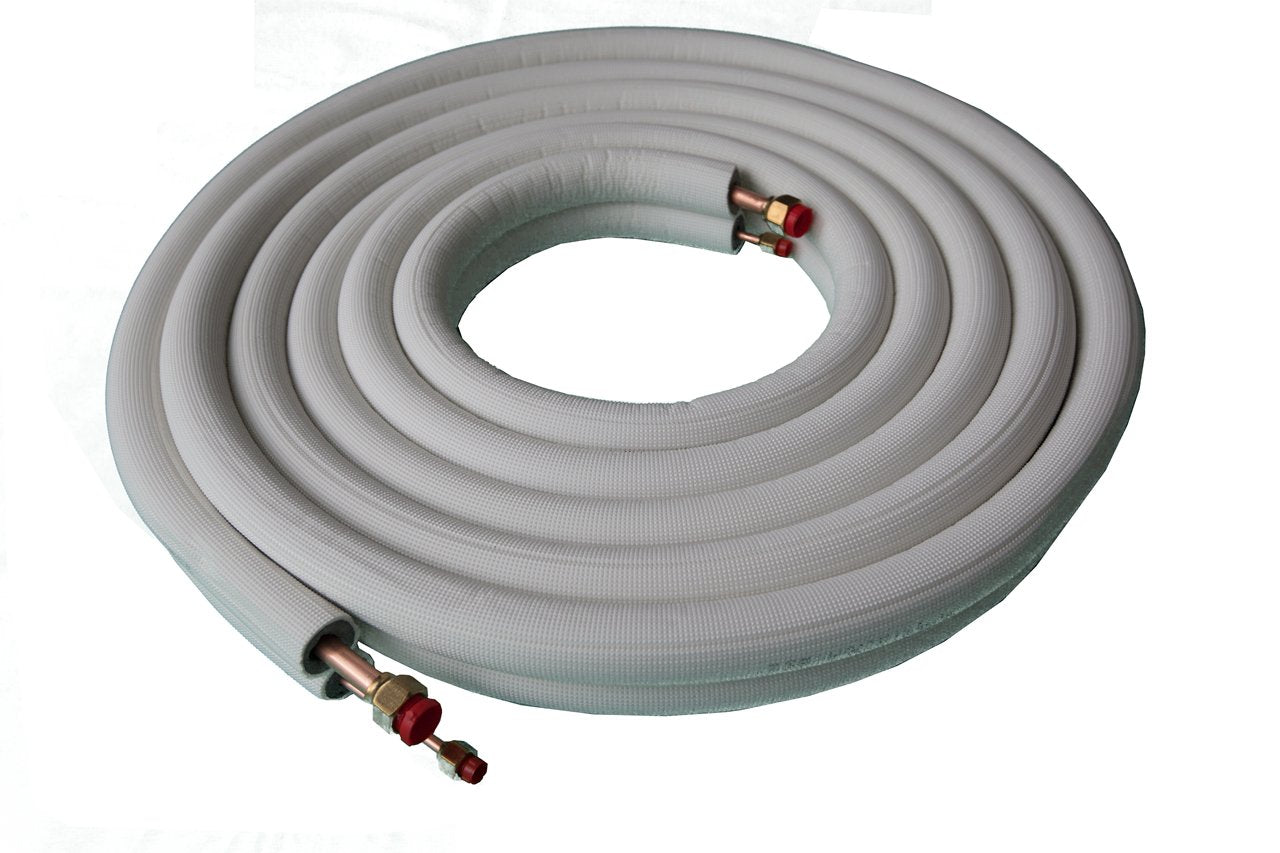

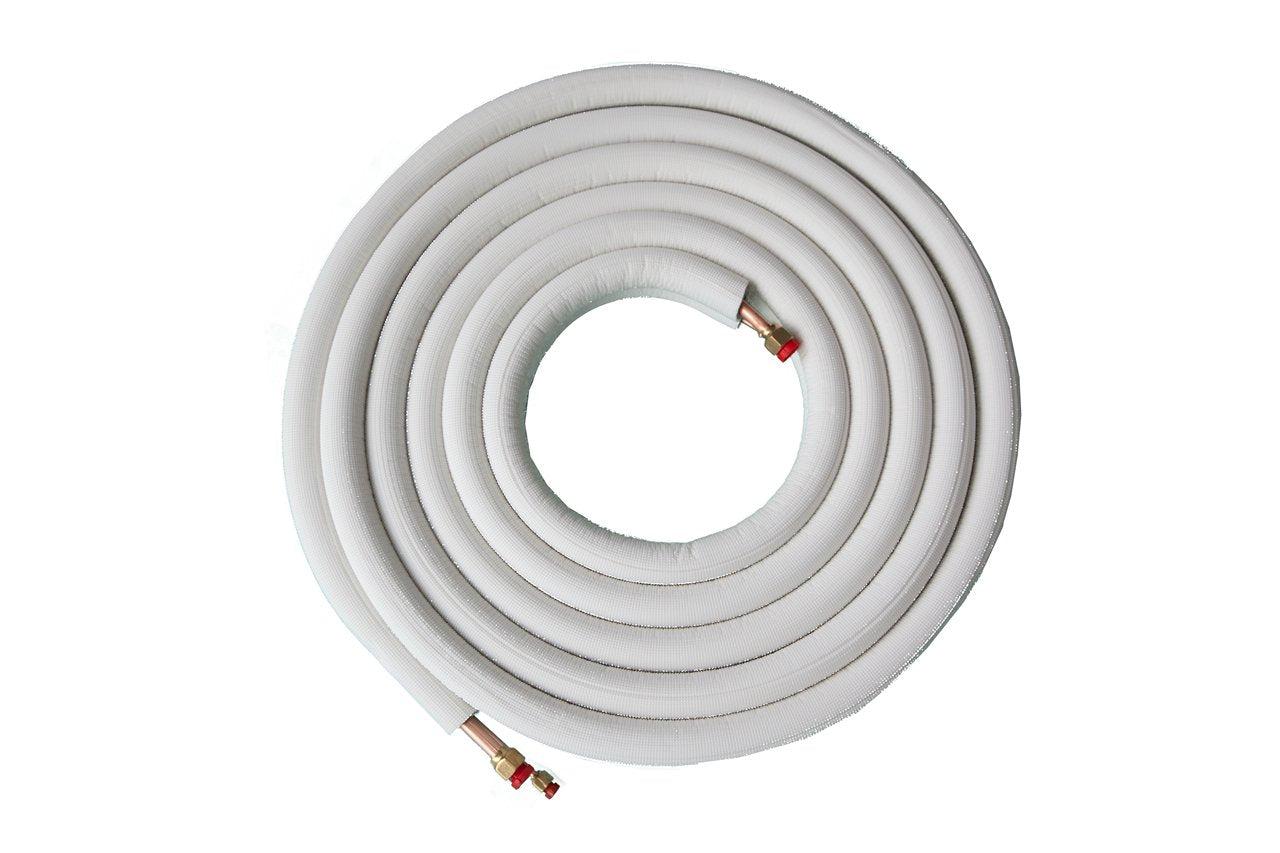

• Insulated Copper Line Sets
| Model No. | Description |
| TCP09L15 | 15 feet line set – 1/4” liquid & 3/8” suction line with 3/8” insulation |
| TCP09L25 | 25 feet line set – 1/4” liquid & 3/8” suction line with 3/8” insulation |
| TCP09L50 | 50 feet line set – 1/4” liquid & 3/8” suction line with 3/8” insulation |
| TCP12/18L15 | 15 feet line set – 1/4” liquid & 1/2” suction line with 3/8” insulation |
| TCP12/18L25 | 25 feet line set – 1/4” liquid & 1/2” suction line with 3/8” insulation |
| TCP12/18L50 | 50 feet line set – 1/4” liquid & 1/2” suction line with 3/8” insulation |
| TCP24L15 | 15 feet line set – 3/8” liquid & 5/8” suction line with 3/8” insulation |
| TCP24L25 | 25 feet line set – 3/8” liquid & 5/8” suction line with 3/8” insulation |
| TCP24L50 | 50 feet line set – 3/8” liquid & 5/8” suction line with 3/8” insulation |
| TCP3/8 & 3/4L50 | 50 ft line set – 3/8″ liquid & 3/4″ suction with 3/8″ insulation |
| TCP3/8 & 7/8L50 | 50 ft line set – 3/8″ liquid & 7/8″ suction with 3/8″ insulation |
